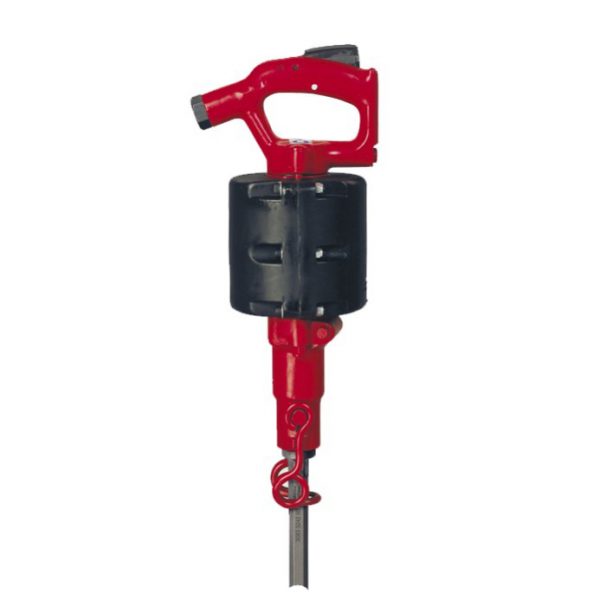

CP 0014 Rock Drill

Weight:  14.77 lbs
Length:  18.8 in

CP 0014 Ideal for drilling operations which are above the capacity of CP 0009 and where a full size rock drill would beunwieldy, the CP 0014 is the ideal tool. As a rock drill witha normal depth rating of up to 0.6 m. (more in favourable circumstances), it can be used for:

  • Bolting applications such as Rawlbolts and foundationbolting
  • Quarry pop shots
  • Foundation bolts
  • Plugging

• Demolition shots and sign-hanging

• Drilling in concrete, granite, limestone, brick work

• As a hammer it will chip concrete, cut chases enlargecavities, trim brick faces and scabble surfaces


CP 0014

• High power-to-weight ratio

• Six-spline piston provides ample load-bearing surfaces for long life

• Cushioned piston for smooth operation,long life

• Spring retainer

• “D” handle with outside trigger

• Integral, large-capacity oil chamber in thehandle provides continuous lubrication

• Teasing throttle for precise control • Muffler available to reduce noise • Right-hand rotation

CP 0014 Specs
Weight14.77 lbs
Length18.8 in
Air Consumption47 cfm
Blows Per Minute2520
Vibration Level 3 Axes (ISO 20643)66.2 / 69.5
Sound Pressure Level (ISO 11203)103
Sound Pressure Level (ISO 11203)88
Retainer TypeSpring
Drill Rate in Hard Rock7.1 / 6.3 in/min
Hole Diameter1/2" - 1 3/4"
Hole Depth25"
Air Inlet3/8"
Chuck Size Hex7/8" x 3 1/4 in
