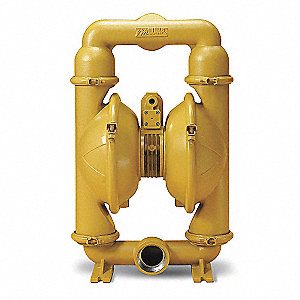

2″ Versamatic Air Powered Pump

Suction:  2"
Discharge:  2"
Versamatic’s E2 2″ pump uses the Elima-Matic® Air Valve System to provide non-stalling, lube-free performance. It is available in a clamped or bolted design, with some models offering a side discharge feature that prevents corrosive fluid from leaking onto the pump’s center section.
Rent or PurchaseRequest DemoQuestions?

The E2 2″ Pump. . .

  • Is available in either plastic or metal
  • Avoids blow-by when the pump is online but not in use
  • Is self-priming
  • Provides dimensional interchangeability with Wilden™ 2″ pumps
  • Offers horizontal discharge model on bolted metallic pump
  • Available in threaded or flanged connections, drops into hard piped installation/application
2″ Versamatic Air Pump 2″ Versamatic Air Pump
2″ Versamatic Air Pump
Suction2"
Discharge2"
Max Particle Size0.25" (0.635 cm)
Flow Rate 0-155 gpm (0-587 lpm)0-155 gpm (0-587 lpm)
CasingAluminum
Air Exhaust.75" NPT
Air Inlet .5" NPT
Suction Lift Dry20' (6.1 m)
Suction Lift Wet 25' (7.6 m)
Shipping Weigh70 lbs
