D Series Desiccant Dryers

HOW IT WORKS

HEATLESS REGENERATION

Moist, filtered compressed air enters the pressurized on-line desiccant-filled drying Tower 1 through the shift valve (A). Up-flow drying enables the desiccant to strip the air stream of moisture. Clean, dry compressed air exits through shift valve (B) to feed the air system. When in regeneration mode, Tower 2 depressurizes to atmosphere through the muffler (C) when the valve (D) opens. A portion of dry compressed air (purge air) is diverted before exiting (B) and passes through off-line Tower 2 and exits at valve (D) to desorb the moisture from the desiccant. Once

desorbed, valve (D) closes and Tower 2 is re-pressurized. At tower shift-over, valve (E) will open, causing shift valves (A & B) to shift. Tower 2 will be placed on-line to dry the bed. Operations will switch and Tower 1 will be regenerated

HEATED PURGE REGENERATION

Moist, filtered compressed air enters the pressurized on-line desiccant-filled drying Tower 1 through valve (A). Up- flow drying enables the desiccant to strip the air stream of moisture. Clean, dry compressed air exits through valve (E) to feed the air system. Tower 2 (when in regeneration mode) closes valve (B), then depressurizes to atmosphere through muffler (C). Valves (D & G) open and the heater turns on. A portion of dry compressed air (purge air) is diverted before exiting (E) and passes through the heater. Hot dry purge air desorbs the moisture from the desiccant as it flows down through Tower 2 to exit at valve (D). Once desorbed, the heater turns off and cool dry purge air continues to pass until the desiccant bed is cooled. Finally, valve (D) closes and Tower 2 is re-pressurized. At a fixed time interval, valve (B) will open and Tower 2 will be placed on-line to dry the bed and valves (A & D) will close. Operations will switch and Tower 1 will be regenerated.

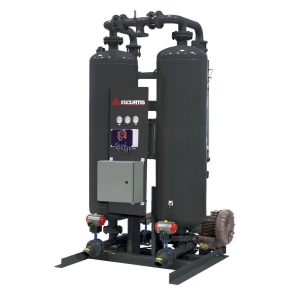

BLOWER PURGE REGENERATION

Filtered compressed air enters on-line desiccant-filled, drying Tower 1 through valve (A). Up-flow drying enables the desiccant to strip moisture from the airstream. Clean, dry compressed air exits through (E) to feed the air system. Tower 2 (shown in regeneration mode) valve (B) closed, depressurizes to atmosphere through muffler (C). Valves (D & F) open and the heater turns on. The high-efficiency blower draws ambient air and feeds it through the heater. The ambient airstream passes through valve (F) and flows downward through the moist desiccant in Tower 2, collecting water vapor before exiting valve (D). Once the desiccant is fully desorbed, the heater turns off. Valves (F & D) close and Tower 2 is re-pressurized. At a fixed time interval, valve (B) will open and Tower 2 will be placed on-line to dry the airstream and valve (A) will close. Operations will switch and Tower 1 will be regenerated.
