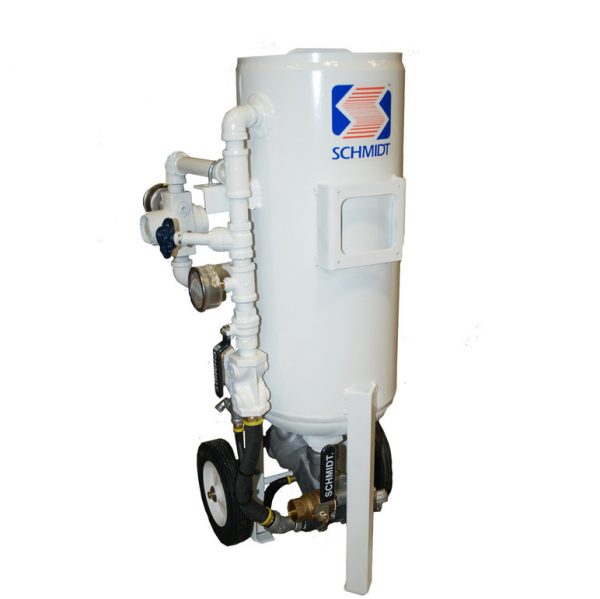

Schmidt Mini 0.9 Soda Blaster Portables

Dimensions (H x W x L) with lid/screen:  365/16"x141/2"x181/2"(922x368x470mm)
Piping Size:  3/4"

Recognized and trusted around the globe, Schmidt portable blasting systems are designed to provide the lowest pressure drop while using a wide range of media. Available in packages or individually, the low maintenance design minimizes downtime and increases productivity. Customsystems can be designed to meet specific needs with a multitude of options, these units featurenormally closed, fail-safe valves and controls for greater safety and performance.


• 125 psi (8.6 bar) system includes wheels and single pipe handle instead of load skid and 25′ of twinline control hose and 25′ water line instead of 55′. Also includes 3/4″ ID x 25′ blast hose with 3/16″ SN nozzle. All other standard system features included— vessel with lid and screen, TVII with tungsten carbide, slotted sleeve, G2™ pneumatic deadman and wet blast attachment.


The Schmidt® M-Series blasters add flexibility to
your blasting operation. These multi-media units can be used with a wider range of abrasive media than standard blasters, including sodium bicarbonate, aluminum oxide, plastic, glass beads, crushed glass and even steel grit. Use a single system for all your jobs—from cleaning surface grease and oil to stripping rust or paint. The M-Series can achieve the surface profile you need because you have the ability to use the abrasive best suited for the job.

The key to these multi-tasking systems is in the precision controls. A pressure regulator reduces blast pressure when working with delicate objects. Full port bypass allows work on tougher applications, while differential pressure control provides consistent media flow when blasting with lightweight abrasives. Other features including a media vibrator and the built-in efficiency of the Schmidt 90-degree cone bottom to assist with smooth flow of nearly any type ofabrasive. Combined with the Thompson Valve II metering valve and G2 deadman control, the M-Series are designed to tackle a wide range of applications in a single system.

Additional Features and Options:
• Low overall height for easier filling and handling
• Specially engineered chassis gives easy access to the Thompson Valve II (TVII) metering valve
• An abrasive shutoff valve allows removal of the TVII without emptying abrasive from the vessel
• Electric controls available
• Remote abrasive cutoff option available for conveniently blasting air without abrasive (such as cleanup)

Schmidt Mini 0.9 Soda Blaster Portables
Dimensions (H x W x L) with lid/screen365/16"x141/2"x181/2"(922x368x470mm)
Piping Size3/4"
Maximum Pressure 125 psi
